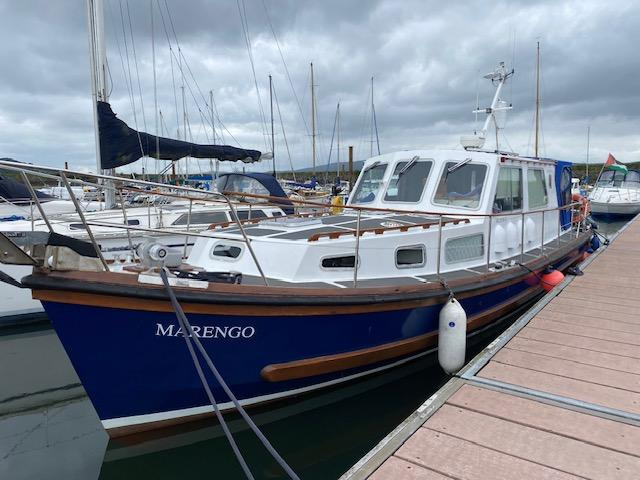

• Nelson 42 Aft Cockpit'

    'Marengo'

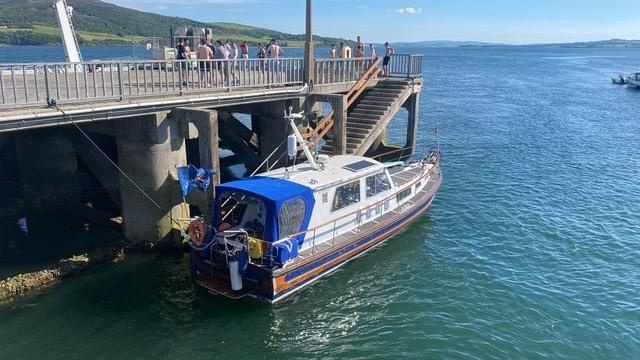

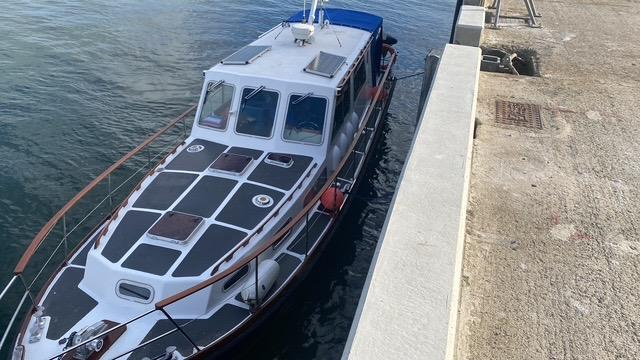

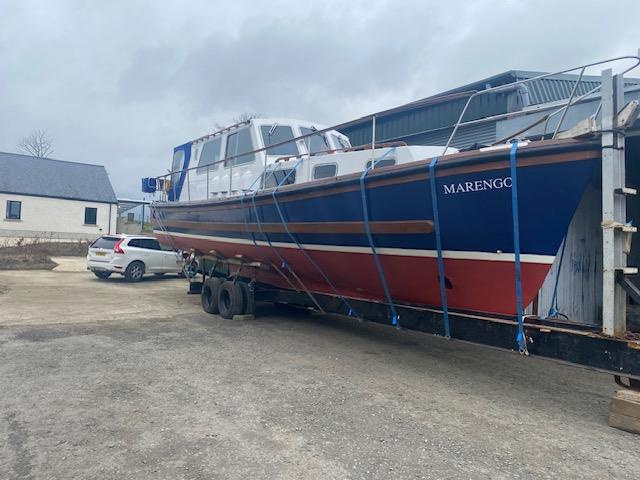

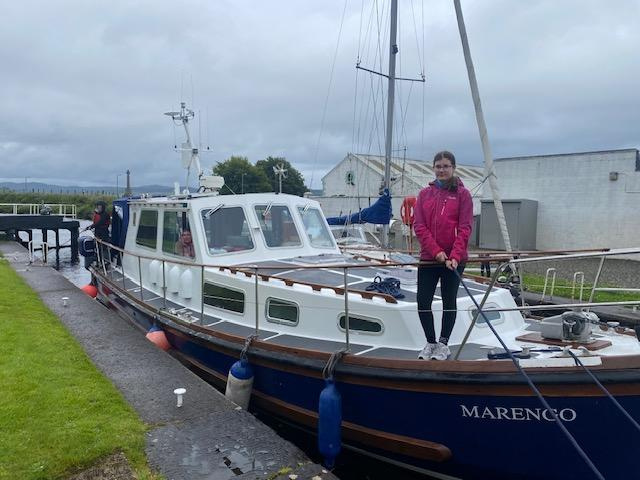

    MARENGO is a much-loved example of the Nelson 42 which was a development of the extremely successful Nelson 40 design. The hull share was tweaked to give fuller and higher sections forward, improving the load carrying capacity and providing a drier ride in heavy weather. The hulls were moulded by Halmatic to Lloyd's standards and then fitted out by a variety of different yards

    MARENGO was refitted to a high standard internally between 2017-19, modifying the layout below decks to provide a larger forward cabin and heads. She offers comfortable and reliable cruising for four people.

  • LOA: 42'
    Beam: 12'
    Draft: 3.5'
    Year: 1977
    Hull Material: GRP

  • Engines: 2
    Accom: 4 berths
    Builder: Halmatic
    Designer: TT Boat Designs
    Location: Londonderry
    Price: £42,000

  • For further information
    Please Contact:

    Steve: +44 (0) 780 320 2311
    Harry: +44 (0) 777 868 2909
    info@nelsonyachts.co.uk

  • ACCOMODATION

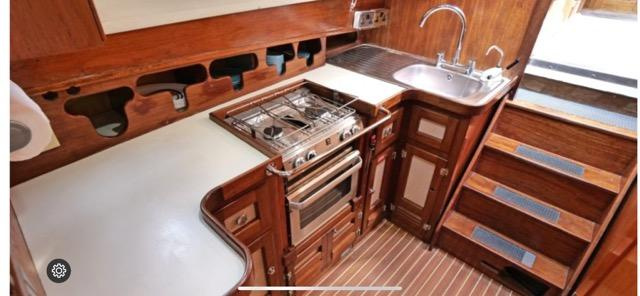

    Galley:
    Voyager 4500 gas cooker, two burner, grill and oven.
    Fridge/Freezer-24V .DC, water cooled compressor, front loading.
    Stainless steel sink with Mixer Tap
    Manually pumped,filtered drinking water tap
    Heads:
    Jabsco manual marine toilet, wash hand basin, Mixer tap pulling out as a shower head. Heated Towtel rail.
    Heating:
    Diesel fired wet system heating.4 Heat exchanger blower units, located in galley, saloon and forward cabin
    Entertainment;
    CD/Radio head unit. TV antenna system
    Lighting:
    Overhead lighting throughout the interior. Reading lights in forward cabin. LED bulbs fitted to all lighting
    Accomodation:

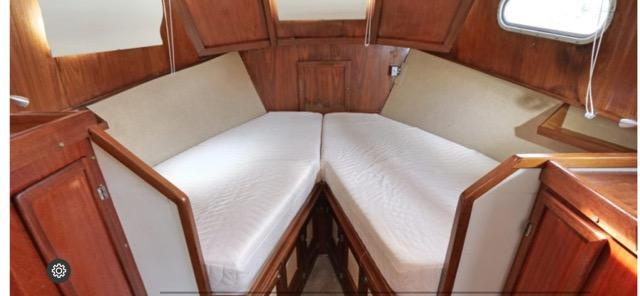

    Twin cabin forward, Heads, Galley, Saloon.
    The accomodation wasre-fitted and reconfigurated- 2017-2019

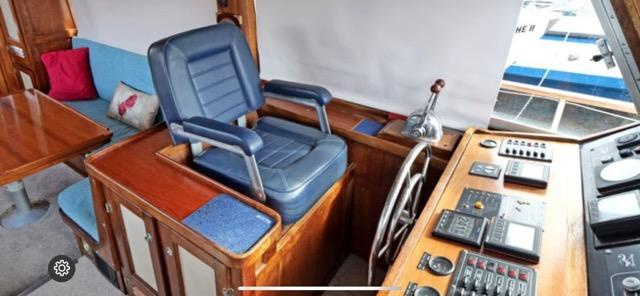

    Wheelhouse:
    Helm station located to port with helm seat and engine dash panels and Nav instruments above Engine controls outboard of seat.
    Nav Station to starboard with forward facing bench settee. Chart storage within chart table top.
    Bench seats outboard to port and starboard.
    Saloon table offset to port with opening leaf extending starboard.
    Hanging locker to port and starboard sft of saloon seating.

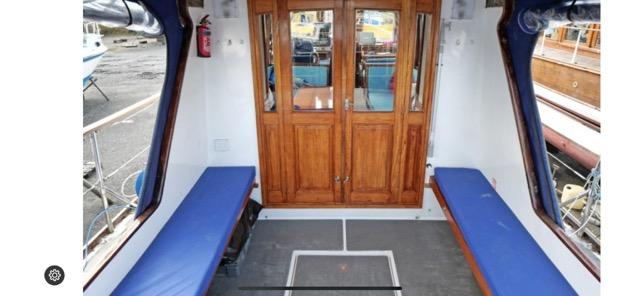

    Double open doors to aft cockpit.

    FEATURES

    MARENGO is a much loved example of the class which was refitted to a high standard internally between 2017-19, modifying the layout below decks to provide a larger forward cabin and heads.
    she offers comfortable and reliable cruising for four persons.

    ELECTRICAL

    24V. DC onboard power system
    12V. DC system for lighting and instrumentation
    230V. AC shore power system with 2 extension leads
    Single connection point.
    Hardwired system with RCD protection.
    ABSO Battery Charger 230V.AC-24V.DC, 30 amp. Water heater, 3 pin sockets.
    Sterling Products 24V.DC-230V.AC
    2 x 100w solar panels. MPPT Charger Controller for solar panels
    Battery Banks.
    Engine: 24V.DC, 2x12VDC lead acid batteries
    Domestic: 24V.DC, 6x Trojan deep cycle traction batteries
    Bow thruster battery: 24V.DC, 2 x 12V.DC lead acid batteries

  • MECHANICAL

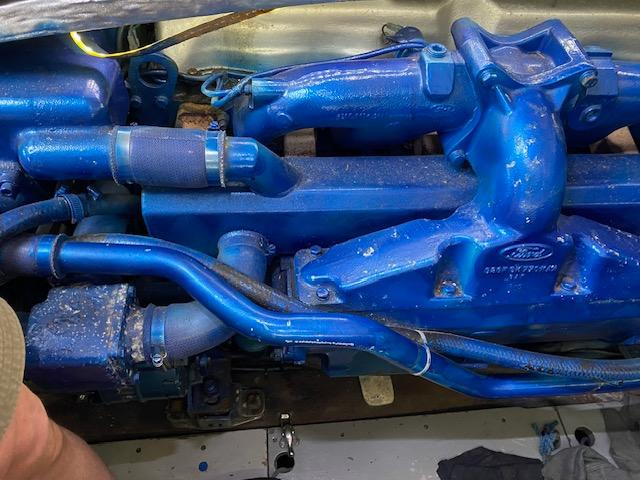

    2 x Ford Mermaid Turbo Plus Intercooled engines (Ford 2720 series), 300hp each engine @ 2500RPM. They are factory reconditioned engines fitted 1999/2000.
    Calorifier 75 lires capacity heated by engine or immersion heater

    PRM hydraulic reversing marine gearboxes. The starboard engine gearbox was renewed in 2018. Single lever Morse controls. NASA EX-1engine exhaust temperature monitor and alarm.

    Engine driven alternators on both engines. Sterling power products ProAlt C alternator controller


    Sidepower bow thruster with push button control at helm station.

    Engines last serviced in March 2025.
    New Stainless steel propellor shafts and bronze propellors and one stern steering tube fitted in 2023.

    Single station hydraulic steering. Stainless Steel Wheel.

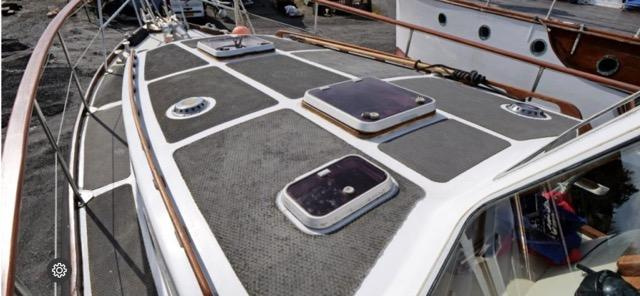

    DECK

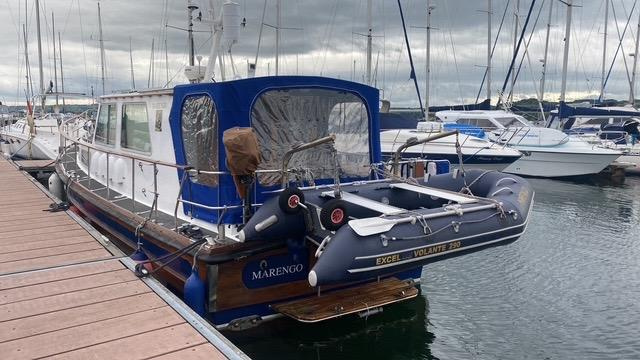

    Davits fitted on transom for dinghy. Outboard lifting davit on port quarter.
    33 Kg Rocna anchor on 60m, !0mm chain rode.Anchor extension Rode- 20M 16mm anchor braid
    Lofrans Cayman 88 electric anchor windlass
    Selection of mooring warps
    Fenders
    BoathookBathing platform and swimming ladder
    Cockpit tent and winter tent
    Cockpit cushions
    Salt water deckwash with plug in hose on foredeck

    NAVIGATION

    Garmin Reactor 40 autopilot system installed in 2018
    Raymarine C120 Classiv MDF with plotter and radar functionality with Raymarine 2kw radome scanner.
    Panasonic Toughbook operating Open CPN, Antares and C Map cartography.
    Digital Yacht AIT 200 AIS Transponder
    Autohelm ST50 Navigation Instruments
    Standard Horizon DSC VHF and Sailor Radio
    Garmin GPS

  • SAFETY

    NASA Clipper win speed and direction.
    Selection of Pilot Books.
    Seago 4 person cannister liferaft.Last serviced 2021.
    MOB lifting sling
    Steaming and Navigation lights, all LED
    XL290 inflatable dinghy, hard transom and two alloy thwart seats
    Manual bilge pump
    3 x electric bilge pumps all need replacing

    Other Information

    Marengo is in excellent mechanical order and would be an excellent way to get into Nelson's with spending a lot of money. THe boats are go anywhere sea boats with a very high reputation for sea worthiness and safety. For many years they were used as pilot boats for Trinity House and are still being used for this purpose in many parts of the world.
